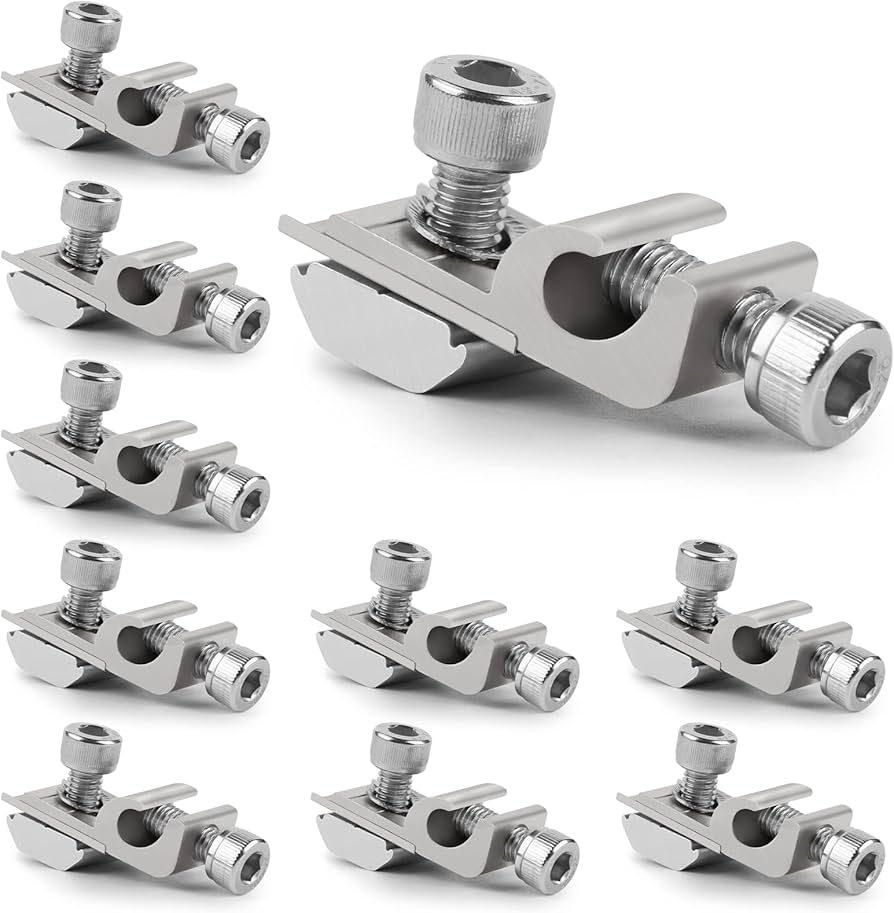

10pcs Earth Clamp Floor Solar Panel Earthing Clip Kit – Reliable Grounding Solution for PV Module Mounting Structures The 10pcs Earth Clamp Floor Solar Panel Earthing Clip Kit is a compact, efficient grounding solution designed to connect solar panels, rails,...
The 10pcs Earth Clamp Floor Solar Panel Earthing Clip Kit is a compact, efficient grounding solution designed to connect solar panels, rails, and support structures to the earthing system. This kit ensures electrical continuity and safety by bonding each solar module to the mounting frame, helping prevent electrical hazards, static buildup, and lightning damage.
Ideal for both rooftop and ground-mounted PV systems, each clip is engineered for quick installation, high conductivity, and corrosion resistance. Whether you're building a new system or upgrading an existing array, these earthing clips ensure compliance, protection, and peace of mind.
| Feature | Details |
|---|---|
| Material | Stainless Steel / Tin-Plated Copper |
| Clip Size | Fits standard 35–50mm framed solar modules |
| Surface Treatment | Anti-corrosion coated / electropolished |
| Quantity | 10 pieces per set |
| Application | PV Frame to Rail Grounding |
| Connection Type | Serrated teeth for frame bonding |
| Installation Method | Pressed between module frame and rail |
| Electrical Resistance | < 1 milliohm (low contact resistance) |
| Compatibility | Aluminium solar rails and module frames |
Reliable Grounding Path
Ensures electrical continuity between the panel frame and rail, essential for fault current dissipation.
Quick, Tool-Free Installation
Designed for fast, press-fit application during module mounting—no need for complex tools or wiring.
Strong Mechanical Bond
Serrated teeth bite through anodized coatings to ensure a secure electrical connection.
Rust and Weather Resistant
Made from stainless or treated copper, offering high durability in coastal, humid, or high UV zones.
Compact Design
Slim profile integrates seamlessly into rail systems without affecting module alignment or aesthetics.
Multi-System Compatible
Works with most commercial solar panel sizes and aluminium rail designs used in residential or commercial setups.
Residential rooftop solar installations
Ground-mounted PV systems
Commercial and industrial solar arrays
Retrofit upgrades to improve grounding compliance

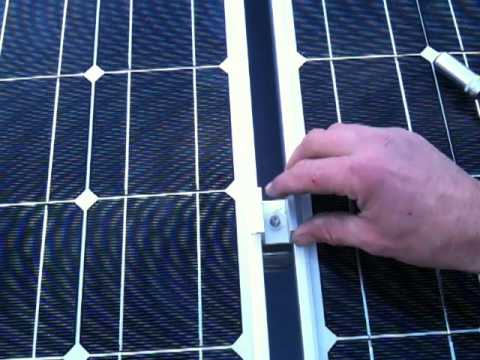

Align the earth clip between the PV module frame and mounting rail.
Secure the panel using the end or mid clamp.
Allow the clip’s serrated teeth to penetrate the anodized surface, creating a solid electrical bond.
Repeat for each panel in the string for full system grounding.
Connect the rail system to the main grounding wire or earth rod.
